DPR UV varnishing module for Taurus and Aries
Product Description
UV Varnishing Module for Label Finishing
Flood varnish, spot varnish and cold foil for DPR finishing systems

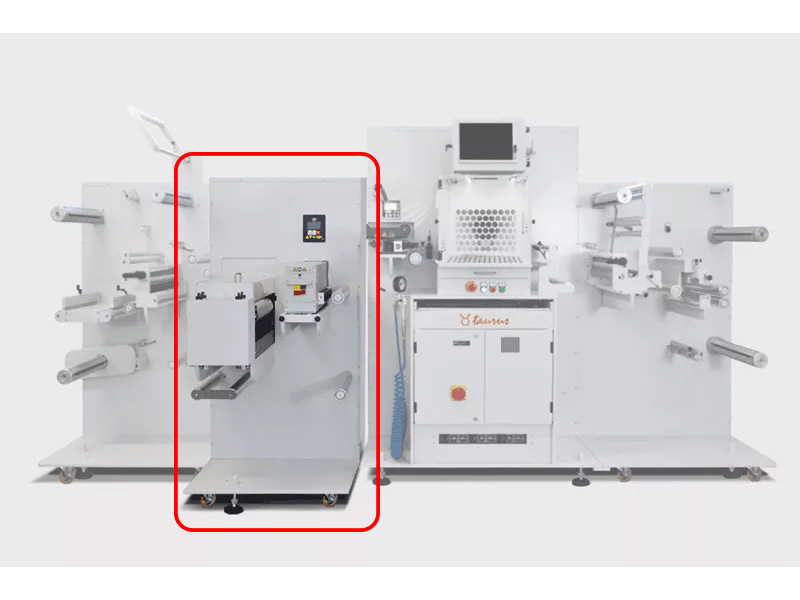

The DPR UV varnish module is a label embellishment solution designed for DPR semi-rotary label finishing systems, including the Aries and Taurus series.
It enables the addition of a premium finish (gloss, matte, selective varnish or cold foil) during the finishing process, without reducing production speed.
A modular and high-performance varnishing solution
The DPR varnish module is integrated in-line with your existing finishing machine and operates in perfect synchronization with the die-cutting and rewinding speed.
Key benefits:
- In-line UV varnishing with no additional processing steps
- Precise and consistent finishing quality
- Compatible with printed substrates
- Visual enhancement and added label protection
- Modular solution, also available as a retrofit
Two types of varnishing available

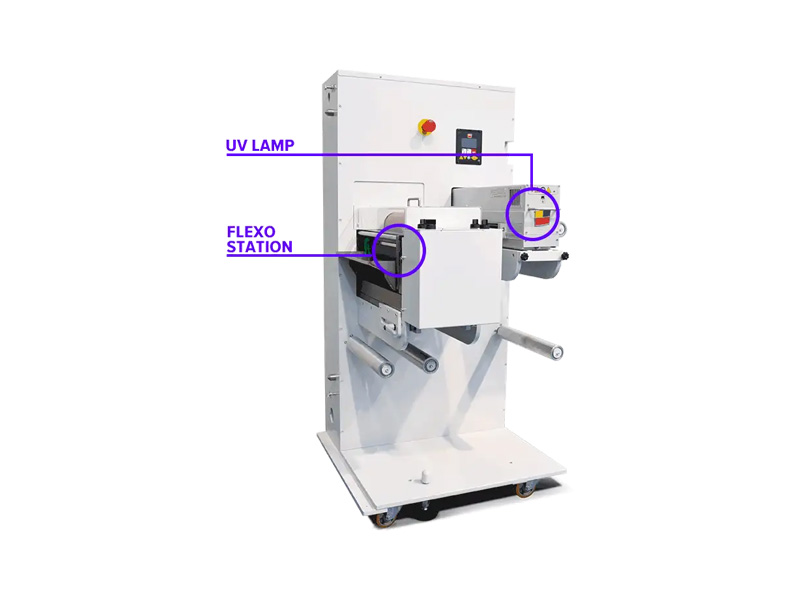

UV Flood Varnish – Full Coverage
Flood varnish applies an even coating across the entire label surface using a flexographic unit with an integrated UV lamp.
Ideal for:
- enhancing gloss or matte appearance
- intensifying colors
- protecting labels against scratches, moisture and wear

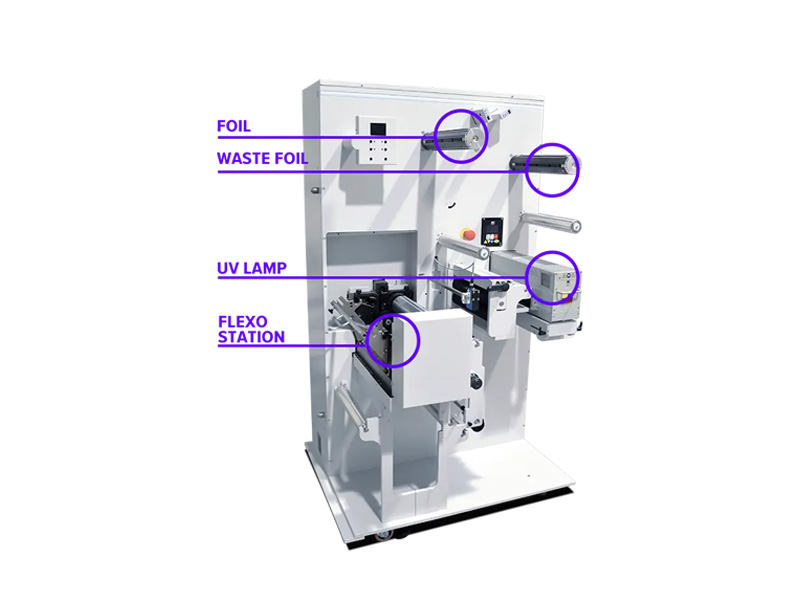

UV Spot Varnish & Cold Foil – Selective high-end finishing
The spot varnish module allows targeted application on specific areas such as logos, text or graphic elements.
When combined with the cold foil option, it creates metallic effects with strong visual impact.
Perfect for:
- premium labels
- cosmetics, wines & spirits
- luxury products or limited editions
Intelligent and safe UV technology
The DPR varnish module is equipped with an advanced UV system:
- Automatically adjusted UV power according to machine speed
- Automatic safety shutter when the substrate stops
- Instant curing for consistent, high-quality results
Compatibility and integration
✔ Compatible with DPR Aries and Taurus finishing machines
✔ In-line installation without major modifications
✔ Seamless integration into existing production workflows
✔ Suitable for industrial production environments
Article number: DPRVRN35
| Brand | DPR |
|---|
| Module type | Flexographic UV varnish module (retrofit) |
| Machine compatibility | DPR Taurus and Aries finishing systems |
| Applications | Flood varnish, spot varnish, 1-color flexographic printing, cold foil option |
| Technology | Flexographic unit with anilox roller and integrated UV lamp |
| Media type | Paper, plastic films |
| UV lamp type | UV mercury lamp |
| Lamp power | 160 W/cm |
| UV lamp warranty | 1,000 hours |
| Power supply | 400 VAC three-phase – 50/60 Hz |
| Total power consumption | 7 kW |
| Required compressed air | 6 bar |
| Available options | Full-rotary spot varnish module, full-rotary flood varnish module, cold foil option |
| Installation | Retrofit – easy installation on existing machines |
| Main benefits | Premium finishing, enhanced label protection, visual and tactile added value |
