Valloy Duoblade FX digital knife cutter

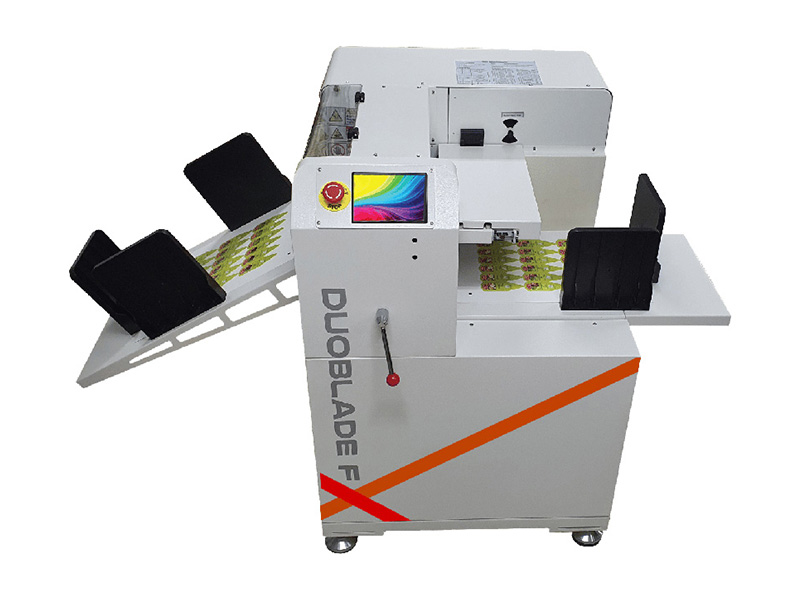

Duoblade FX – Digital sheet-fed cutting plotter

The Valloy Duoblade FX is a fully automated digital cutting machine, designed for finishing and cutting printed sheets in small to medium runs. Thanks to its dual cutting heads, smart CCD camera and automatic sheet feeding, you achieve fast, accurate production without manual adjustments.

All you need to do is load a stack of printed sheets. The machine recognizes the job via a QR code, selects the correct tool, and immediately starts cutting.

Features

Advanced automation

• Automatic sheet feeding up to 1,000 sheets (200 gsm)
• Automatic job recognition via QR code
• Automatic calibration via CCD camera
• No manual settings required between different jobs

Dual cutting head

• Kiss-cut and full cut-through
• Creasing, perforating and pen plotting functions
• Higher productivity thanks to two active tools

Professional precision

• High-precision CCD vision system
• Cutting tolerance of ± 0.05 mm
• Ideal for complex stickers and fine contours

High productivity

• Cutting speed up to 3000 mm/s (600 sheets/hour)
• Smooth, continuous production

Ease of use

• Intuitive user interface
• Easy operation via touchscreen
• Wi-Fi, LAN and USB connectivity

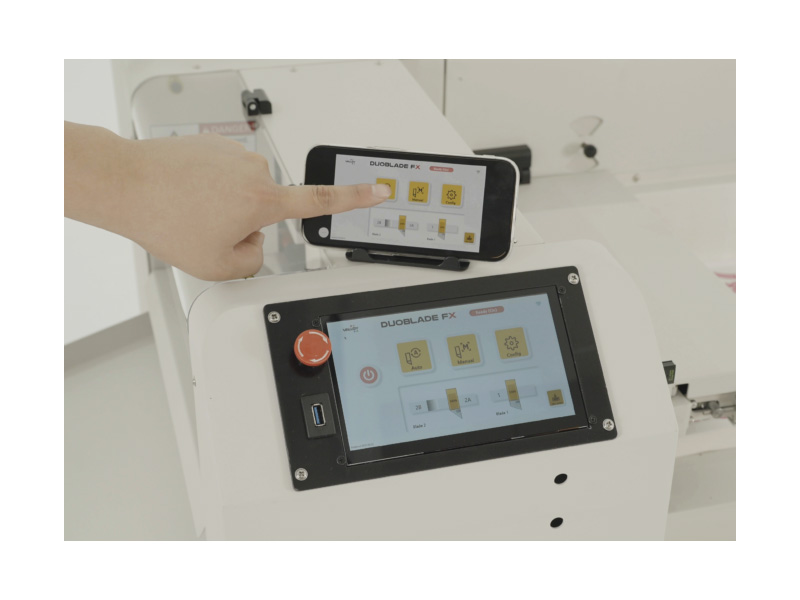

• Remote operation possible

Applications

• Stickers and self-adhesive labels
• Cards and badges
• Tags, toppers and cardboard labels
• Small-run packaging
• Prototypes and personalized finishing

Integrated computer and user-friendly software

The machine is equipped with an integrated computer and intuitive software. Settings such as spacing, selection, cutting path, start point, direction, speed, acceleration and cutting pressure are automatically optimized for efficient processing. At least 10,000 jobs can be stored. In addition, the software calculates the required processing time as well as the blade lifetime of the Valloy Duoblade FX.

CCD camera and automatic job recognition

The Duoblade FX stands out thanks to its CCD camera, which recognizes jobs via assigned QR codes. This allows jobs to be switched automatically without operator intervention. The CCD camera also scans the printed registration marks to accurately detect and correct any image shifts between sheets.

Article number: VL50101013
